MVP Vacuum Concentrators achieve high-throughput automatic evaporation of liquid samples through vacuum, heating, and rotation. They improve work efficiency and sample recovery, reduce human errors, and enhance the accuracy of analysis.
Vacuum concentration is a common technique used in laboratories to remove solvent from a solution, effectively concentrating the solute (the dissolved material). It works by exploiting the relationship between pressure and boiling point, namely lower pressure, lower boiling point. When you reduce the pressure in a container, the boiling point of any liquid inside also decreases. Among its benefits, we find therefore a faster evaporation but also the fact that conducting the process at lower temperatures helps protecting heat-sensitive components in the sample. Among all these advantages, LabTech MVP Vacuum Concentrators grant also the possibility of solvents recovery, offering therefore an environmentally friendly solution for your lab.
16 sample positions, compatible with 200ml and 50ml vials
The whole sample vial is fully immersed and heated in the water bath
It features a convenient snap-lock safety lock design
No need to pause the instrument or pressure relief for all the samples as a single sample can be added and removed at any time
The evaporation chamber is designed with full transparency, providing strong visibility.
Each sample vessel is sealed and discharged independently through its own pipeline, avoiding liquid transfer issues
Designed with a 10’’ touch screen control system
Dual-condenser tower design, enabling dual recovery of solvent vapor and exhaust gas
It allows to speed up the evaporation rate. The sample is continuously mixed, preventing the overheating
The MVP Series can use 2 different models of top cover, known as Flex-MVP and MVP-48, making the system more flexible

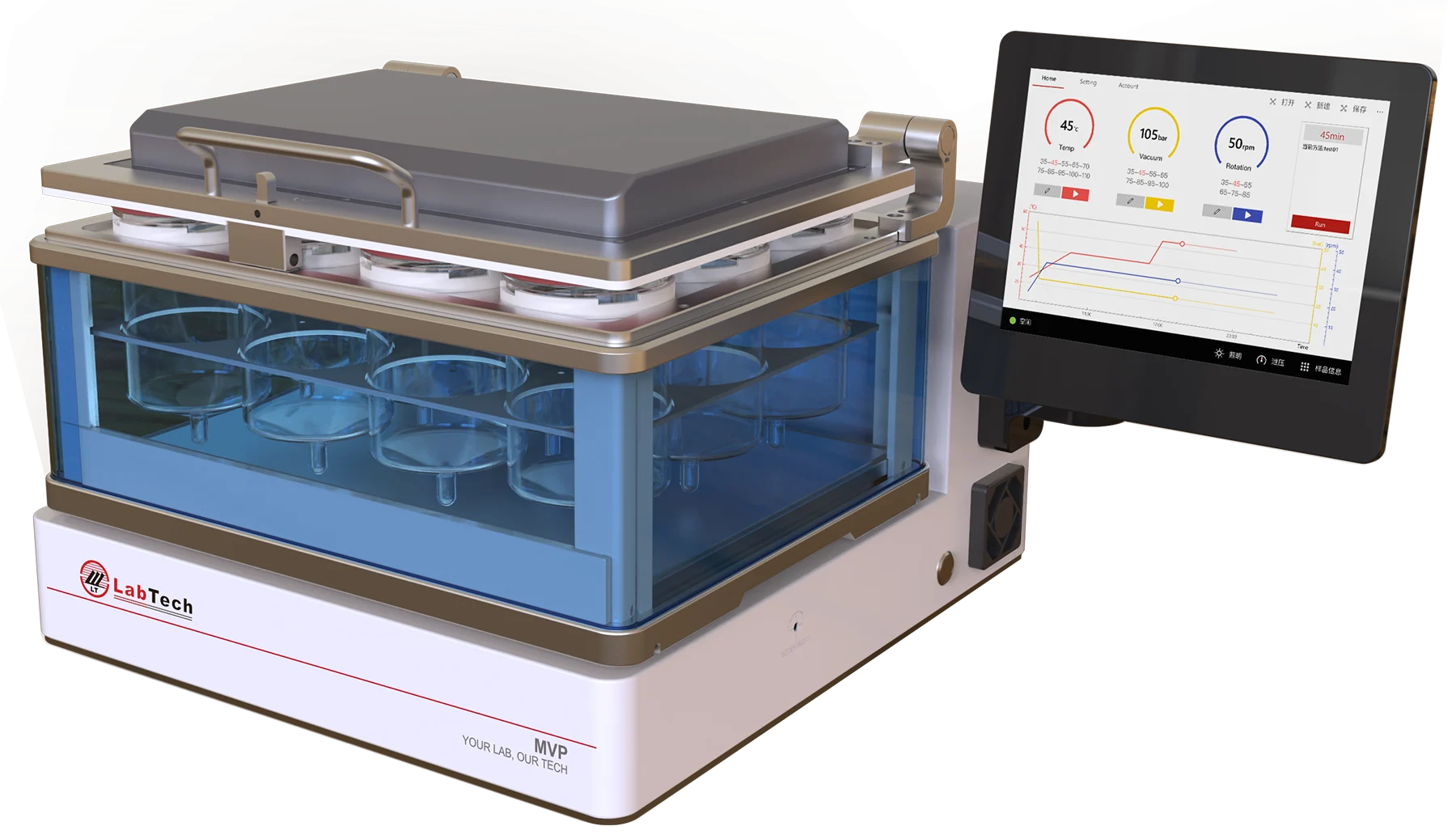

The MVP-12 is specially produced for large volume needs. For this reason, it is suitable for extraction applications. Designed for high throughput, this instrument replaces up to 12 rotary evaporators, saving valuable lab space and resources. Up to 12 samples with max. 900ml each can be concentrated simultaneously.
Fully surrounded water bath heating with higher evaporation efficiency
Solvent recovery rate of 500ml petroleum ether is more than 85%
Safety lock design enables fast open/close of the cover, more convenient and safer

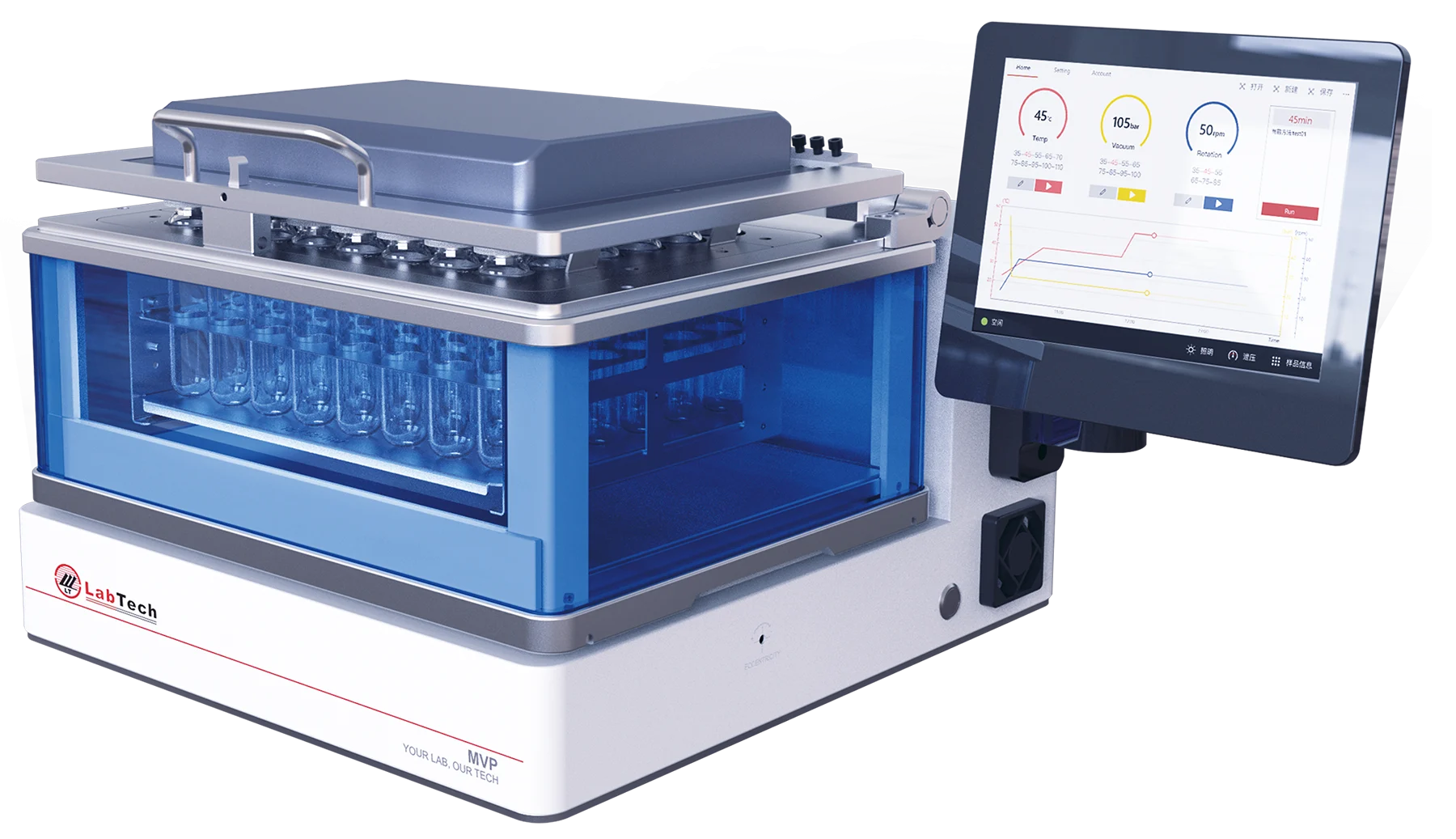

The MVP-48 grants a larger capacity, thanks to its 48 positions. The possibility to work with centrifuge tubes allows an easier workflow in the laboratories. Up to 48 samples (60ml vials or 50ml centrifuge tubes) can be concentrated simultaneously.
Pesticide residues, additives in food, determination of acid in food and extraction
Determination of API, extraction, contaminants and residues
SVOC pollutants in soil, solid waste and atmospheric samples, such as organochlorine residues, polycyclic aromatic hydrocarbons
QC of plastics, petrochemical, oil, fats and textile
